Overview

This service is also aimed at existing users of the software or AutoCAD managers and could apply to the full blown package or the cut down equivalent – AutoCAD LT.

Common commands that are often executed, repetitive tasks and regularly used features of the software can be turned into macros often resulting in a single click command.

If you have the full blown version of the software rather than AutoCAD LT, then it is possible to go a step further and write your own commands.

Accessibility

To make the macros or new AutoCAD commands easily accessible to all users, I would recommend utilising the tool palettes feature.

Tool palettes provide a way of displaying icons with built in predefined properties that will perform several tasks in one click.

They can also be exported and shared with other users which helps tie in with ensuring your in-house CAD standards are utilised effectively.

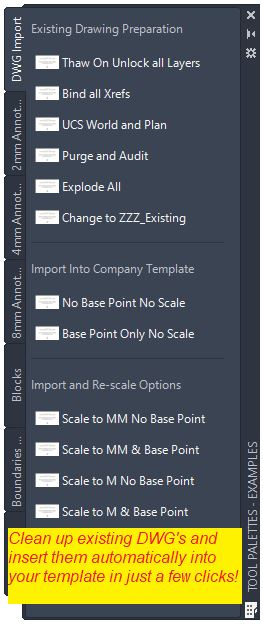

Shown below is a tool palette for automatically creating text, dimensions and leaders on the correct layer with the correct style

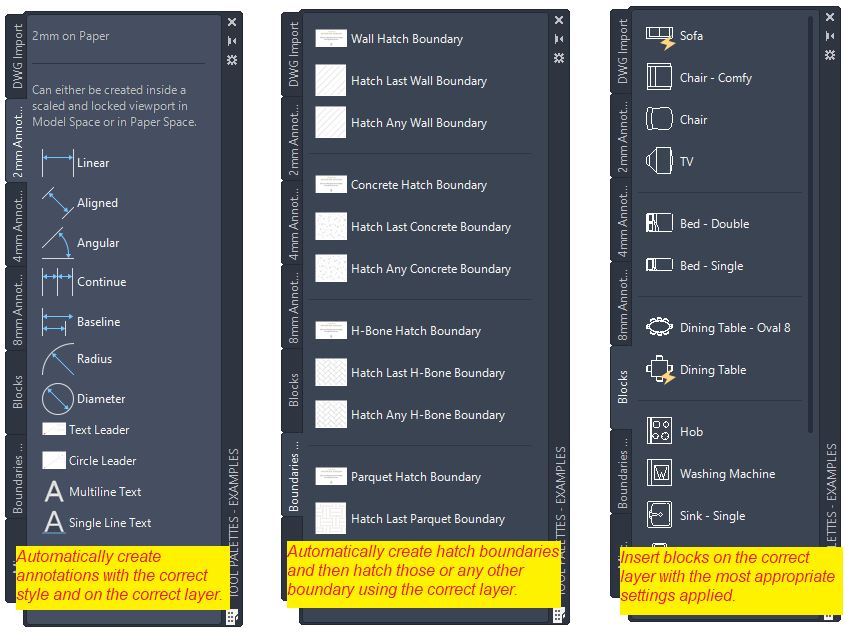

Another example shows how hatch boundaries can be created and hatching applied automatically.

Blocks and their typical settings can also be stored easily in the tool palettes.

AutoCAD Tool Palettes

Free demo

I am happy to provide a free demonstration of what the potential of AutoCAD customisation using command macros and tool palettes entails for the way that you work.

To download more information and costs, please click here

I look foward to hearing from you...
